Project Address
Block H, Banani, Dhaka
Designed By
DWm4 Architects
Project Size
9.95 Katha, 02 Basements + 09-storied Residence

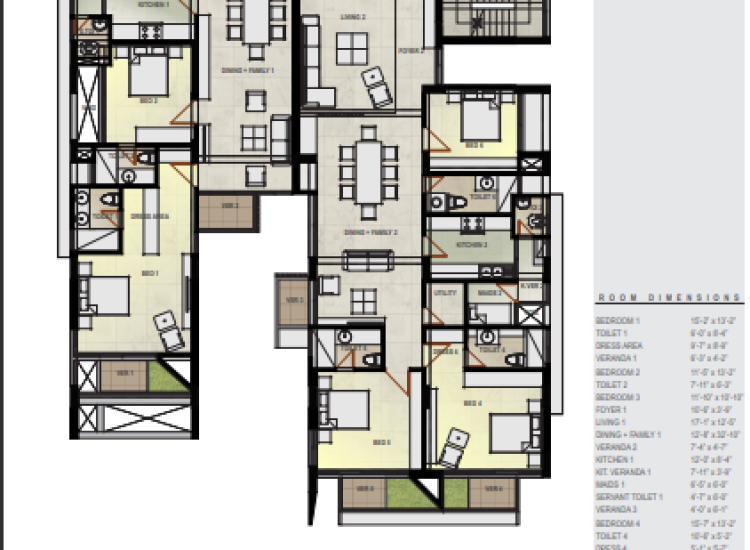

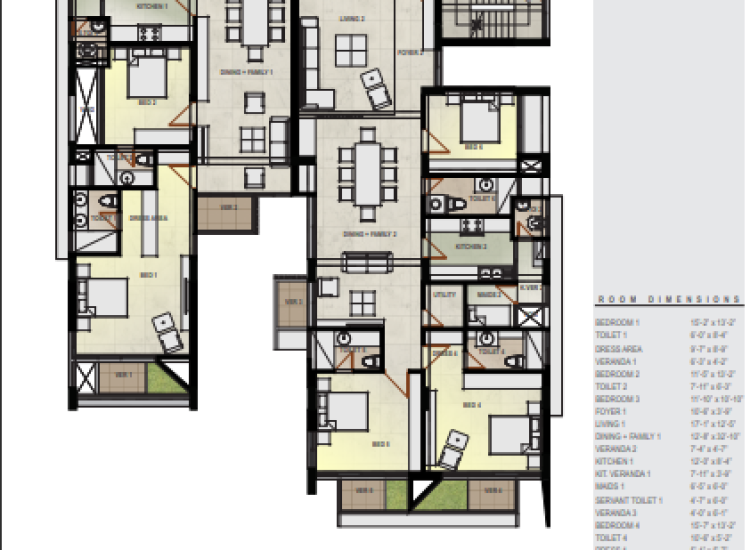

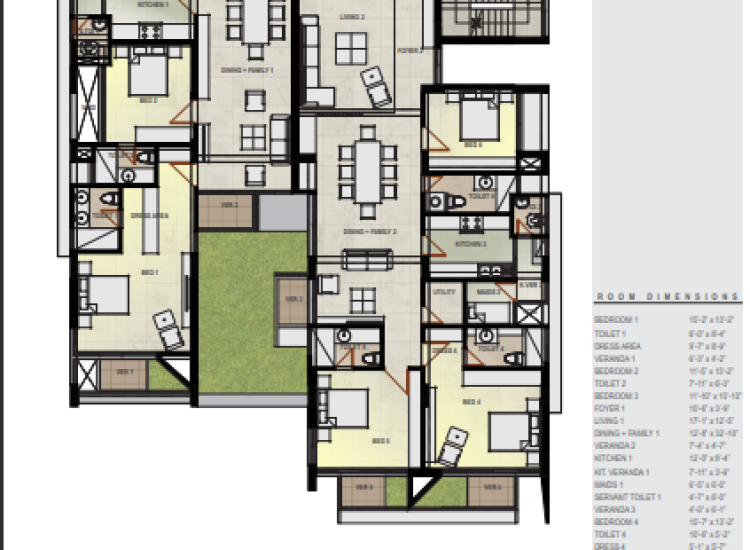

Apartment Size
2318 sft, 2336 sft – 16 Apartments
Details of Specification and Amenities
PROJECT INTENT

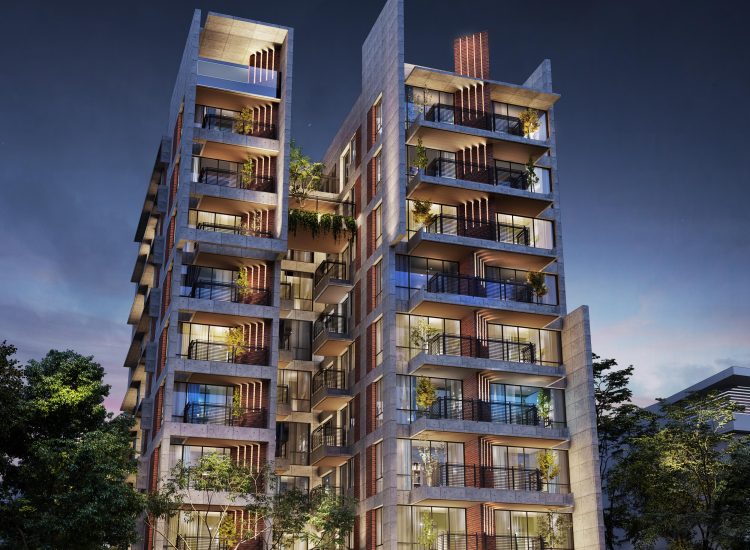

This luxurious apartment complex shall be an East facing building, privileged with a strategic location and a rare vista of the Banani R/A. Standing tall, it shall exhibit a façade that embodies modern technology and design thinking. The built form’s exterior shall express the meticulous design and the ambition to live to optimum standards. Materials that boast elegance and sensitivity shall adorn the spaces that create first impressions, such as an elegant lobby and comfortable but posh common areas. Concrete surfaces shall be rendered or textured with creative formwork, reflecting local craftsmanship. Natural Stone materials such as imported luxurious granite or marble from authentic international sources shall create an ambiance of originality. Apart from enhancing the aesthetic quality and spatial quality through the use of high-end materials, the project shall strive to incorporate materials with International Safety Standards, including fire-safe materials and those with excellent acoustic properties. Glazed glasses used for windows shall use EDF profiles to have larger structural and aesthetic properties in the framing system that comply with the local climate and visual requirements. Featured Main Gate, Boundary wall, drop-off area, and Landscaped Green on the ground level.
A spacious reception area with a concierge desk and a fully furnished visitor’s lounge with a quiet room to facilitate private meetings. The reception lobby shall be finished with high-quality imported marble. Each floor shall be served by two elevators and supported by a standby generator, intercoms, video doorbell/Intercom, driver’s waiting area, driver’s toilet, and two allotments of secured parking. Column guards and wheel guards in the parking areas serve as efficient guides for maneuvering around and protecting built structures. There shall be provisions for cable multichannel TV preferably through the state-of-the-art fiber optic network for the first time in Bangladesh, along with provisions for water reservoir, and termite protection pre-treatment.
Architectural design and planning are to be prepared by reputed architects in the country. After
finalizing the Floor Plan in consultation with you, we will prepare the RAJUK plan for submission and approval of the same. We will also prepare the working architectural drawings, structural drawings, and electrical and plumbing drawings before starting the construction.
Structural design shall be prepared by reputed and experienced professionals/consultants in the
country. Structural Design Parameters are based on American Concrete Institute (ACI) and
American Standards of Testing Materials (ASTM) Codes. A systematic structural combination of steel-reinforced concrete frames and shear wall core must be used. Floor Slabs are of Reinforced Cement Concrete. Comprehensive Checking and Testing of all steel reinforcement by professional Design and Supervising Engineers. Direct Supervision at every stage of construction shall be carried out by a team of experienced and qualified Civil Engineers. Protection from Cyclone Winds (up to 210 km per hour) shall be incorporated in structural design as per BNBC. Structure to withstand Earthquakes of prevalent intensity as per BNBC. Heavy reinforced cement concrete foundation.
Sub-Soil Investigation and Comprehensive Soil Composition test results shall be analyzed by BUET
before laying out the foundation.
TECHNICAL SPECIFICATION
Building Entrance
Decorative & Spacious Main Gate of MS or any other Exclusive Material as per Design and Architectural Theme or as per the elevation & perspective of the building.
Exclusively Designed Logo with project name and address on polished Marble/Granite.
Comfortable Internal driveway.
Guard Room/Drivers’ Waiting Room with Toilet & Shower.
Landscaping/Gardens at the front of the Building or as per the architectural theme.
Attractive Building illumination of the exterior of the building should be designed with a spotlight to brighten the Complex at night.

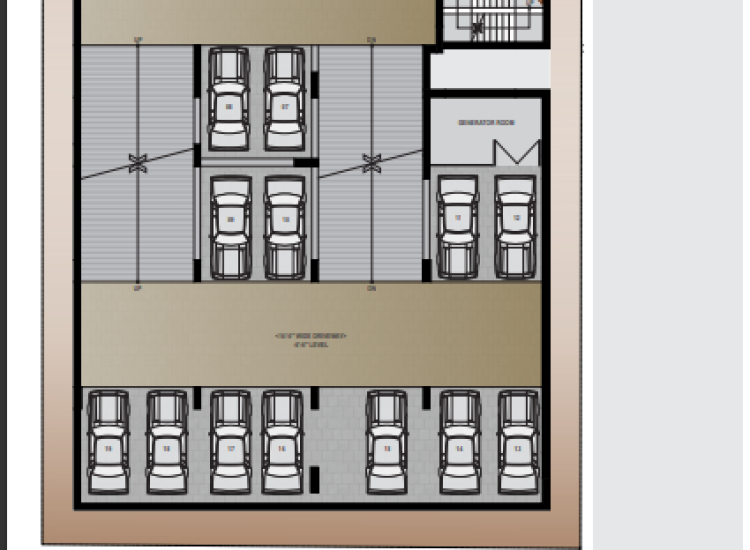

Car Park Areas
Enough parking spaces (minimum Two for each apartment) in the Basements and part of GF.
Engraved pavement tiles for driveway floor.
Spacious and comfortable internal driveway.

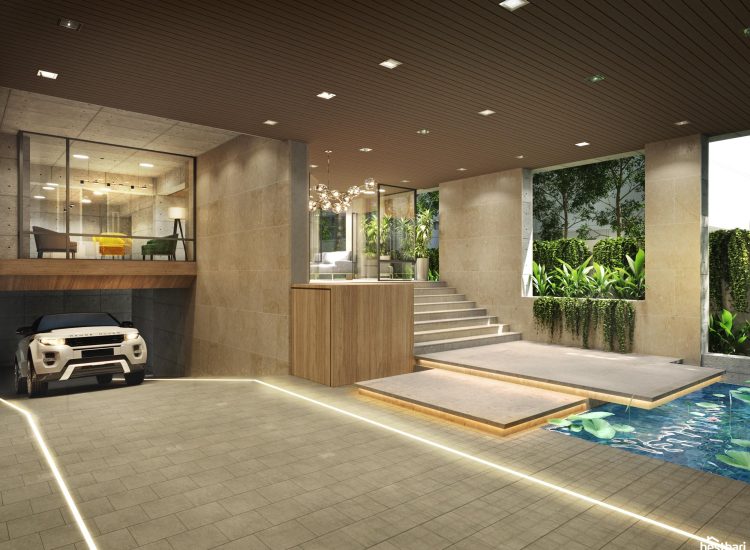

Reception Area
Reception Lobby and Community space shall seclude from the parking area, drivers’ waiting, guard post, etc.
Decorative reception desk with Marble/Granite top.
Marble/Granite floor in the reception area.
Spot Lightings and Drop Ceilings
Painting/Artwork on walls.
Lift Lobbies & Staircases
Spacious and elegantly designed lift lobby on each floor.
Imported Marble (Turkey or Brazil origin) on floors of the Lift Lobby
Imported Homogenous Laser-cut Rustic Porcelain Tiles on Walls.
Non-slip Homogeneous Matt Tiles (China origin) on staircases as designed by the Architect.
Stair railing with heavy wooden/metal handrail supported on elegant Metal balustrades in stairs.
Interior and Painting work.
Community Space
Meeting room for the Apt. Owners and space for a gymnasium for the residents.
BBQ pit and permanent sitting area on the roof (as per architectural design).
Gardens with planters and lighting
Lifts
Numbers 02 nos. International standard Lifts selected from the range of Mitsubishi Thailand, ThyssenKrupp Korea, and Hyundai Korea are available in Bangladesh with the quality of after-sales service that matches the best standard and proven track record. Lifts shall serve from basement 01 to the 8th floor and one lift will be suitable for Stretcher accommodation.
Capacity 8 to 10 persons (as designed)
Speed 1.5 meters per sec (Minimum speed)
Drive System AC / VVVF, Gearless, Variable voltage & Variable Frequency and installed Emergency Landing Device (ELD)
Intercom Car, Machine Room, Reception Lobby, and Lift.
Generator
European or USA or Japan origin standby diesel generators to cover 100% capacity electric load for operating Lifts, Pumps, Common Lights, and all lights, fans, televisions & refrigerators, and all air-conditioners in each apartment in the event of a power outage.
Generator set: Water Cooled Diesel Engine system
Engine: Perkins/ Tempest / Airman/ FG Wilson/Caterpillar with Canopy
Starting System: Auto Starter
Water Pumps
Pressurized water distribution system or gravity distribution system comprised of Two Units (One standby) or as required by design pressure pumps of USA, European origin or equivalent of Pedrollo, Saer, or equivalent brands.
Cable TV, Telephone, Internet & Access Control Provisions
Provision for connection of satellite dish antenna in strategic locations of the apartment preferably in Master Bedroom, 2nd Bedroom, Living & Family Living and maid’s bedroom.
Provision for single Optical Cable Backbone for triple connectivity of Telephone/Intercom, TV, and Internet upon the availability of intended service providers or Stand-alone Provision for multi-channel connection from commercial cable TV operator and parallel Telephone connection in Master bedroom, Family Living & Formal Living and provision for Broadband Connections with CAT 6 cable backbone riser in the building.
Access Control system with card scanners in entry lobbies on the ground & lower ground floors and video doorbell/intercom in each apartment.
All conduit/wiring will be concealed and the master control will be placed at the ground floor level so that the service operator will not be required to go to the apartment every time.
Safety and Security Features
Planning and arrangement for 24-hour security by CCTV and constant surveillance at entry levels of ground and lower ground floors; Fire safety system as per BNBC, Security Lighting, Cautionary and way-finding signage; All power outlets to be earthed and along with Lightning protection system.
Doors
Main entrance door shutters of 7.5 to 8.0 feet height and made of 6.0 mm thick Burma Teak wood paneled on both sides of the solid engineered wood core, decoratively designed with intricate wood joineries by the project architect in combination with elegant Imported Handle Lock, Door chain, Check viewer, Door Knocker, etc. from Hatil/VIPdoors/Wood world or equivalent
All internal doors of 7.0 to 7.5 feet in height of Teak Veneered Particle Flush Door with French polish and mortise lock, door stopper, tower bolt, etc. from Partex/Hatil/VIPdoors or equivalent.
All internal & external door frames are made of Solid Teak Chumble/Mahogony.
All door locks shall be imported brands from Guli /Hafele/Yale or equivalent.
Windows
Sliding Windows system as required by the architectural design of the building. 5/6 mm thickness clear glass with mohair lining with best quality fittings and accessories available locally, Rainwater barrier with 4″ Aluminum Sections preferably EDF sections to have better strength and rigidity in the system. Mosquito nets in all windows.
General Floor Finish
Imported Homogeneous laser cut porcelain mirror polish double loading marble-textured Tiles, 800 mm x 800 mm in floors of all rooms in all Apartment floors.
Bath Room Finish & Fixtures
Imported Bathtubs in One Bathroom.
Designer frameless tempered glass shower enclosure in the other 02 Bathrooms
Imported Marble textured tiles on Walls, 300×600 mm, up to false slab height and non-slip matt tiles in Floors, 600mmx600mm, in all Bathrooms.
Single Bowl under-counter Basin with Marble Worktop in all Bathrooms.
Exclusive Sanitary Wares in Bathrooms (American Standard/Cotto/Inax or equivalent).
Chrome Plated Fittings including Basin Mixtures and 02 way (rainshower & spout) Shower Mixtures in all Bathrooms (American Standard /Grohe/Cotto or equivalent).
Designer Wall Mirrors in all Bathrooms with overhead Lamps (Imported).
Porcelain Soap Cases and SS Towel Rails.
Provision for hot and cold water in all Bathrooms (including the Servant toilet).
Soap case, Towel rail in Servant toilet.
Installed good-quality exhaust fans for all bathrooms.
Kitchen and Balcony
Granite slabs for countertops (for sink and gas burner) with coordinated porcelain tile backsplash.
Double Burner gas outlet.
Chrome Plated Sink Mixture (American Standard /Grohe/Cotto or equivalent)
Double basin stainless steel sinks with mixer (Teka or equivalent)
Exhaust fan and exhaust duct for the hood.
Electrical
Imported Switches and Sockets (MK/ ABB/ Legrand/ Schneider).
Circuit Breakers (Dorman Smith/ Schneider/ Legrand/ ABB).
All Power Outlets with Earth Connection.
Exclusive Light fixtures in all common areas.
Concealed Electrical Wiring with Fire Retardant Cables.
Concealed Wiring & Outdoor Units of Air Conditioner.
Lightning Arrestor at the rooftop.
Sub-station/Transformer (Siemens/Crossworld/Energy Pac) as per EME design
Independent electric meter for each apartment.
Electrical distribution box of foreign origin in each Apartment.
All power outlets with earth connection.
Deformed Bar, 60/72 Grade
Bangladesh Steel &Re-Rolling Mills Ltd. (BSRM) or Kabir Steel & Re-Rolling Mills Ltd. (KSRM) or
Rahim Steel Mills Ltd or AKS or equivalent
Cement/RMC
Scan Cement (Bangladesh) Ltd or
Holcim Cement (Bangladesh) Ltd (Holcim Brand) or
Akij Cement Ltd (Akij Brand) or
Cemex Cement (Bangladesh) Ltd (Cemex Brand) or
Lafarge Surma cement or equivalent
Aggregates & Sand
Stone chips of required aggregates for all columns, beams, foundations & roof slabs 2.5 FM Coarse Sand (Sylhet Sand)
Brick Walls
Good quality 1st Class machine made gas-burnt bricks
Exterior wall thickness will be 10″ and internal wall thickness 5″
Wall between 02 apartments to be of 10” width
Painting & Polishing
Plastic paint in all internal walls and ceilings in soft colors (Berger or equivalent). Clear French polished on wood surfaces, especially on door frames & shutters. Exterior wall finishes with weather coat paint (Berger or equivalent) as applicable.
Additional Terms
Ground floor height to be 14 to 16 feet as per RajUK rule.
Electricity/Water Supply Connection from DESCO/WASA as per Total Calculated Consumption.
Water Softening plant shall be installed
The Community Meeting Rooms shall is installed with a split-type air-conditioning system.
Water drainage provisions are to be done in all terrace areas.
Caretaker’s Room at Ground Level with 02 reserved seats for the Landowners. Driver’s & Guard’s Toilet facilities on Ground Level
Manicured Gardens and Landscaping with Fancy Garden Lights
Central Garbage Disposal Facilities.
The roof of the building is to be finished as such with heat-protective paint or other means to reduce the heat transmission through the roof. Additionally, the roof is to be landscaped by the developer including making provisions for keeping pot plants, etc.
01 (one) year defect maintenance service will be provided by the Second Party owing to construction defects from the date of the handover of the Schedule ‘B’-Building.
The developer shall obtain the Occupancy Certificate of the Building upon completion of Construction.
The developer shall obtain the maximum possible warranty for all important fixtures & equipment installed in the building and shall pass all those warranties to the Building Owners upon handover.
The developer shall provide a minimum of 03 years of Facility Management Services upon handover of the project and the Owner’s Association shall pay the actual cost of service to the Developer in addition to a mutually agreed amount of management fee for the developer company.
